Zero Compromise · BeneHeart L Series

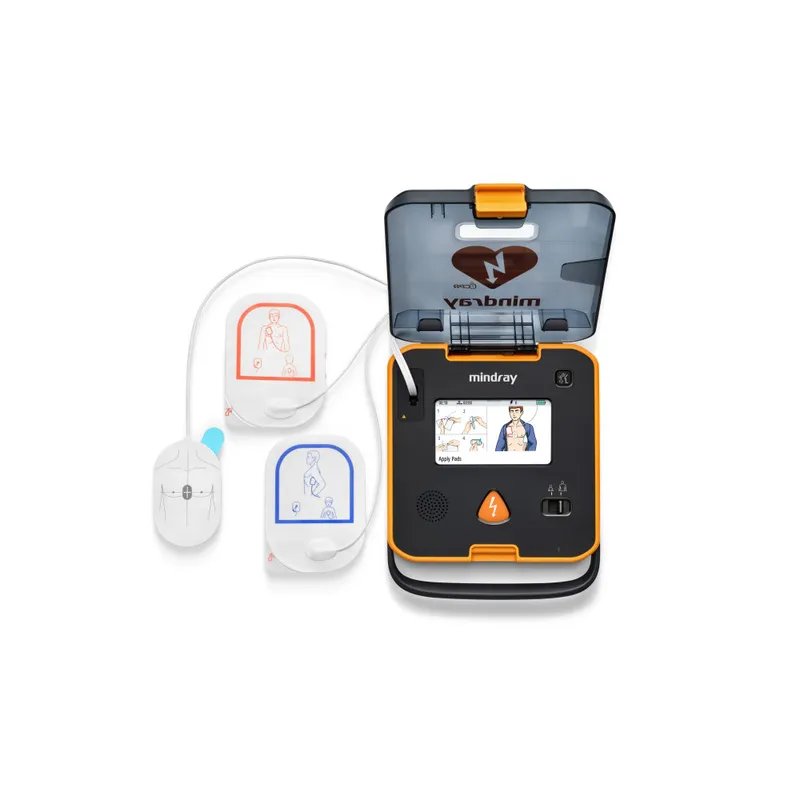

Mindray BeneHeart L2-S-CPR

Semi-automatic AED with a 4.3" colour touchscreen, supplied with MR66 CPR-sensor electrodes.

The L2-S-CPR is the semi-automatic BeneHeart L2 supplied with MR66 CPR-sensor electrodes. The L2 measures compression rate from its standard electrode pads; the MR66 sensor narrows that to ±2 cpm across 40 to 160 cpm and drives CPR Coach on the colour display. The responder retains the shock decision.

±2cpmcompression rate accuracy³

5–6cmcoached compression depth¹

4.3"colour touchscreen³

CPR Coach with MR66 electrodes

The MR66 sensor measures compression rate across 40 to 160 cpm to ±2 cpm, against 60 to 200 cpm at ±3 cpm from the standard electrode pads. Depth and rate prompts are shown on screen and spoken while compressions are underway.

Responder-controlled shock

Charging happens during analysis and the operator presses to deliver, with the ECG rhythm displayed for the duration of the rescue.

Post-event review

At least five hours of ECG waveform, 1000 events and an hour of voice recording are retained for debrief and clinical handover.

Mindray L1 vs L2

Specification	Mindray L1	Mindray L2
Operation	Semi-auto / Auto	Semi-auto / Auto
Display	1.96" dot-matrix LCD	4.3" colour touchscreen
Rescuer guidance	Voice prompts + CPR metronome	Animation + voice + CPR feedback
Capacity	400 shocks @ 200 J	350 shocks @ 200 J
Operating time	≥ 15 hours	≥ 12 hours
Energy	Up to 360 J escalating	Up to 360 J escalating
Charge time	0 s effective — pre-charged during analysis	0 s effective — pre-charged during analysis
Weight	1.9 kg	1.9 kg
Dimensions	196 × 191 × 65.5 mm	196 × 191 × 65.5 mm
Ingress rating	IP55 · 1.5 m 6-surface drop	IP55 · 1.5 m 6-surface drop
Models Available
Auto	L1-A	L2-A
Semi	L1-S	L2-S
Auto + CPR sensor	L1-A-CPR	—
Semi + CPR sensor	—	L2-S-CPRThis device

Figures from the Mindray BeneHeart L1 / L2 datasheet and the L series operator's manual (H-046-028014-00). Specifications are subject to change without notice.

Mindray L Series AEDs

Zero Compromise

The Mindray L2-S-CPR is available in Australia through Aero Healthcare.

Sources & references

Mindray BeneHeart L Series brochure (L1 / L2), Shenzhen Mindray Bio-Medical Electronics Co., Ltd. Source for 38% smaller / 22% lighter, up to 360J escalating energy, CPR Coach depth and rate guidance, ResQNavi™ and AED-Alert 2.0.
Mindray QShock™ Plus — L series AED defibrillation technology. Source for the five-second post-CPR re-shock and comparative shock-cycle timing.
Mindray BeneHeart L1 / L2 Datasheet. Source for 1.9 kg weight, pre-shock pause under 5 s, IP55, 1.5 m 6-surface drop, 5-year battery and pad standby, and all technical specifications.
European Resuscitation Council Guidelines 2025. Each minute of delay to defibrillation is associated with a higher probability of failure to terminate VF and lower probability of survival to discharge.
Tang H, Wu R, Yin L, et al. Escalating vs Fixed Energy Defibrillation in Out-of-Hospital Cardiac Arrest Ventricular Fibrillation. JAMA Netw Open. 2025;8(4):e257411.

Distributed in Australia by Aero Healthcare. Specifications may vary based on installation environment and usage conditions. For details, consult the manual.

This product is not a substitute for direct medical attention from a healthcare practitioner. Always read the label and follow the directions for use.
